Description

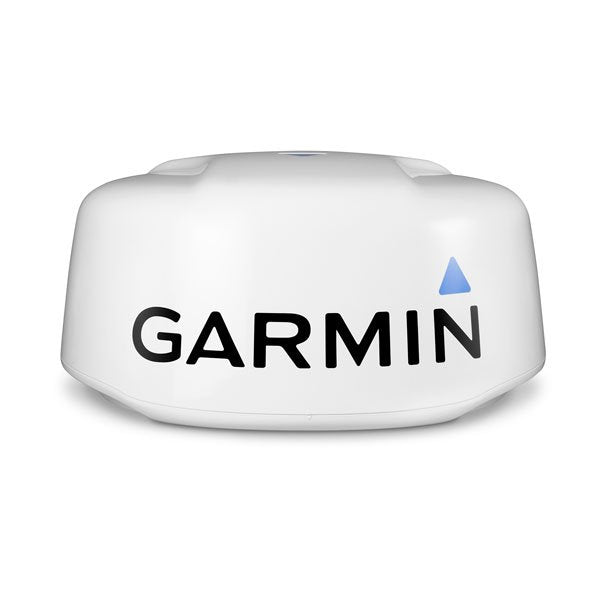

Garmin GMR Fantom 18 Radome
PART NUMBER 010-01706-00
18” DOME RADAR WITH MOTIONSCOPE™ TECHNOLOGY
This 18” dome radar highlights moving targets in color and fully integrates with select Garmin chartplotters.
HIGH-POWERED RADAR
This 40-watt solid-state radar has a range from 20’ to 48 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.
HIGH-RESOLUTION RADAR
The 5.2-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out targets at a distance, while 8-bit true color imagery enhances target separation.
MOTIONSCOPE TECHNOLOGY
MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.
INTUITIVE OPERATION
This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
TARGET SIZE
Adjust the size of objects on the radar image.
AUTO BIRD GAIN
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
ECHO TRAILS
A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.
DUAL RANGE
Single radar antenna is capable of providing split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.
DUAL-RADAR SUPPORT
Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
DYNAMIC AUTO GAIN
This feature automatically adjusts to your surroundings for optimal performance in all conditions.
DYNAMIC SEA FILTER
Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
RADAR OVERLAY
Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
MARPA TARGET TRACKING
Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.
GUARD ZONE
Set the safety zone, and receive an alarm when an object enters the zone.
VRM AND EBL
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.
